TinyBricks are...

small modules designed to be embedded into Your projects...

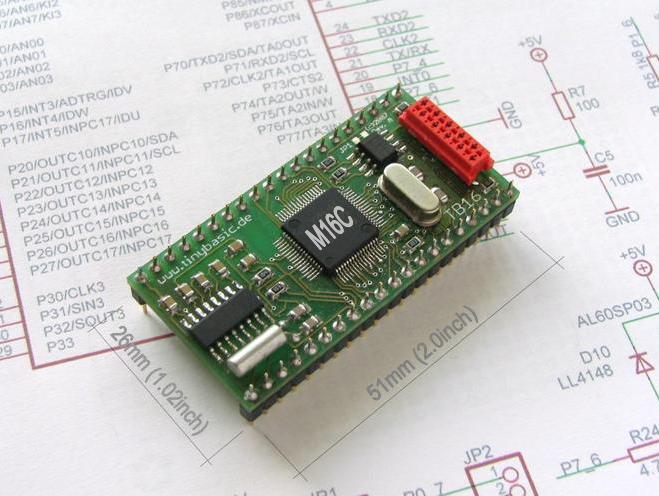

TinyBrick16

  • 40 Pin module,
  • 16 Bit Microcontroller,
  • 128 kB Flash and 12kB Ram,
  • 1x RS232 and 1x RS485/RS232,
  • I2C, SPI, 8x10 Bit ADC, 8x16 Bit PWM,
  • up to 30 general purpose I/Os

You can order these modules here...

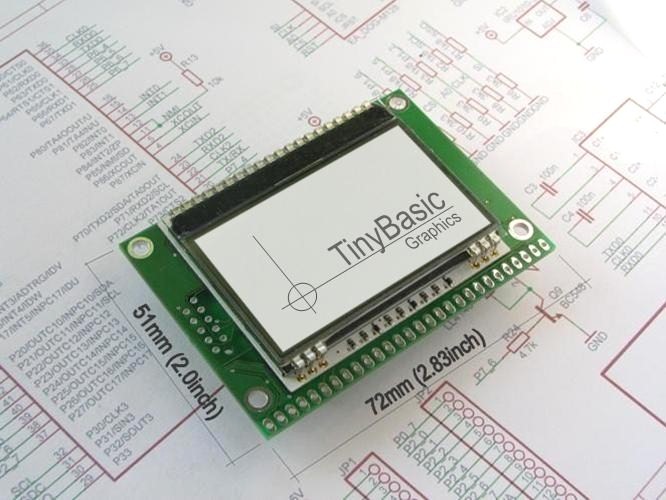

TinyDisplay

  • LCD 128x64 pixel,
  • 16 Bit Microcontroller,
  • 128 kB Flash and 12kB Ram,
  • 1x RS232 and 1x RS485/RS232,
  • I2C, 8x10 Bit ADC, 8x16 Bit PWM,
  • up to 22 general purpose I/Os

You can order the displays here...

...the following things can help to start a development.

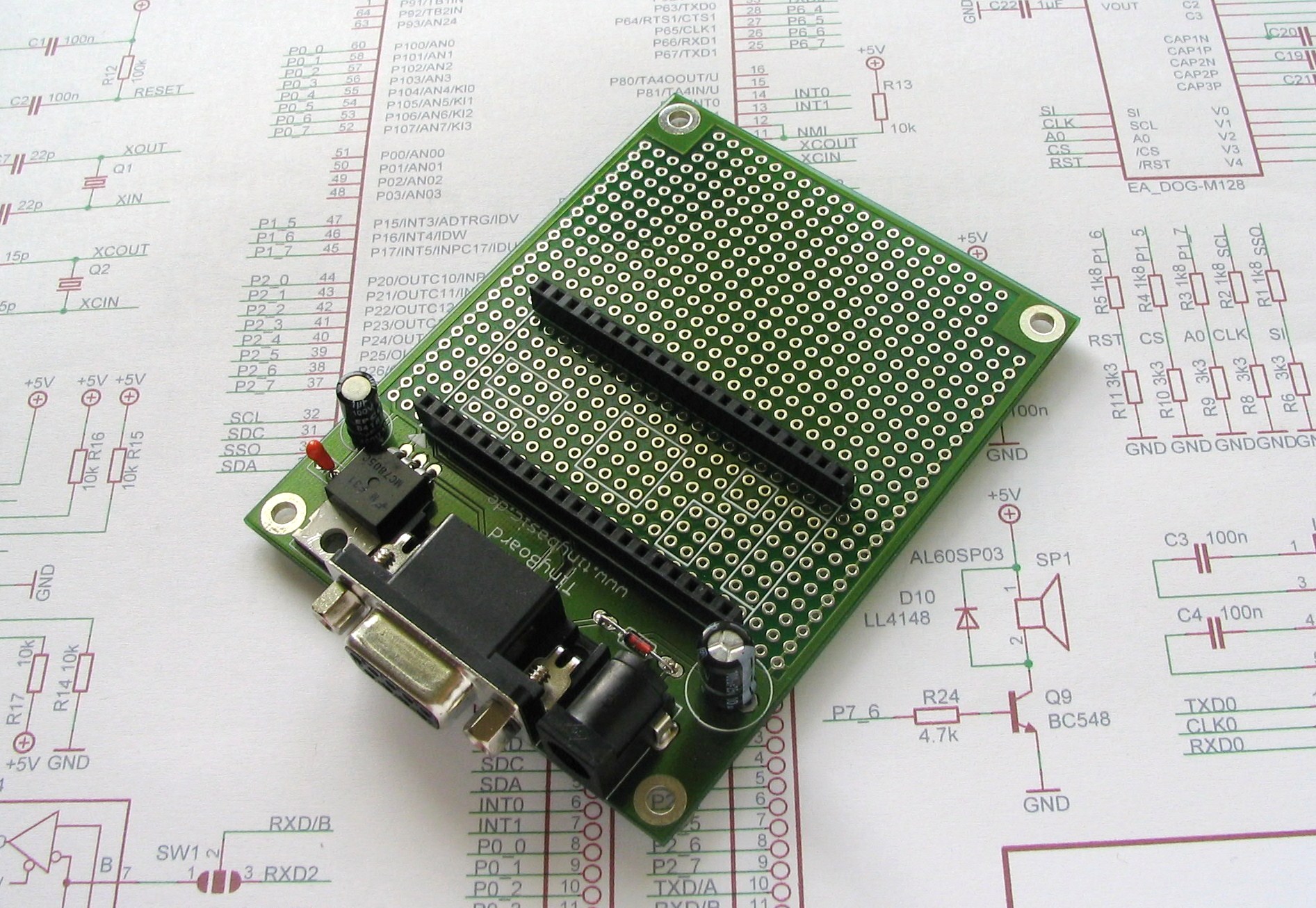

TinyBoard

  • simple bread board,
  • prepared for TinyBricks,
  • can also be used for TinyDisplay,
  • power socket, voltage regulator and
    serial connector

(requires solder)

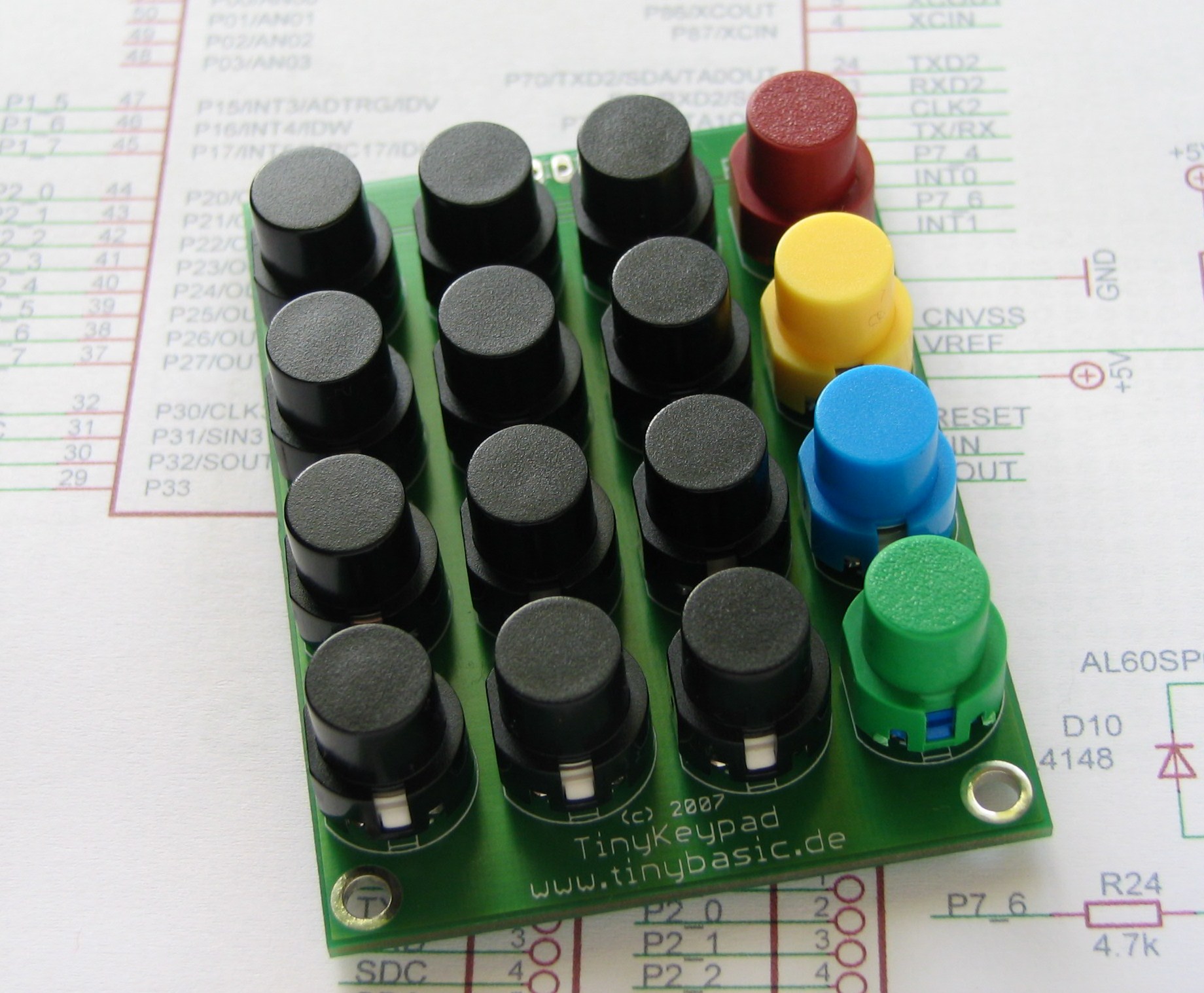

TinyKeypad

  • 4x4 matrix keypad,
  • 4 colored keys





(requires solder)
